FEATURES:

  • Ideal weighing solution for applications such as portion control, food processing, straight weighing or over/under weighing
  • High accuracy single point strain gauge aluminum load cell
  • Designed for speed and accuracy with an extremely heavy duty platform and rugged stainless steel enclosure
  • Ideal for busy shipping docks, outdoor markets, manufacturers, food processing and other bulk sales
  • High resolution with overload protection
  • Standard package includes: platform, shroud, indicator (Legal for Trade), load cells, column, level feet, and all necessary hardware
  • Mild steel platform, with a 304 stainless steel tray for easy cleaning

  • Adjustable tilt display for convenient viewing

  • Aluminum environmentally sealed single point load cell

  • Adjustable feet provides exceptional traction

  • Standard removable column and wall mounting option

  • OP-900 NTEP indicator with 6 digit, 1” display

  • Check-weighing feature for quick portioning

  • Built-in RS-232 communication port

  • Level bubble

  • NTEP class III, 5000 divisions
  • US Legal For Trade CC #: 11-016
  • Canada Legal For Trade CC#: AM-5817
  • Factory Calibrated
  • Overload Protection
  • 1 year warranty on parts



Click Here for Bench Scale Flyer







    Model

    Size and Capacity

    OP-915-1212-100

     12”x12”, Cap: 100lb x 0.02lb

    OP-915-1214-100

     12”x14”, Cap: 150lb x 0.02lb

    OP-915-1616-300

     16”x16”, Cap: 300lb x 0.05lb

    OP-915-1620-400

     16”x20”, Cap: 400lb x 0.05lb

    OP-915-1818-400

     18”x18”, Cap: 400lb x 0.05lb

    OP-915-2020-500

     20”x20”, Cap: 500lb x 0.1lb

    OP-915-1824-500

     18”x24”, Cap: 500lb x 0.1lb

    OP-915-2424-500

     24”x24”, Cap: 500lb x 0.1lb

    OP-915-2424-1000

     24”x24”, Cap: 1000lb x 0.2lb

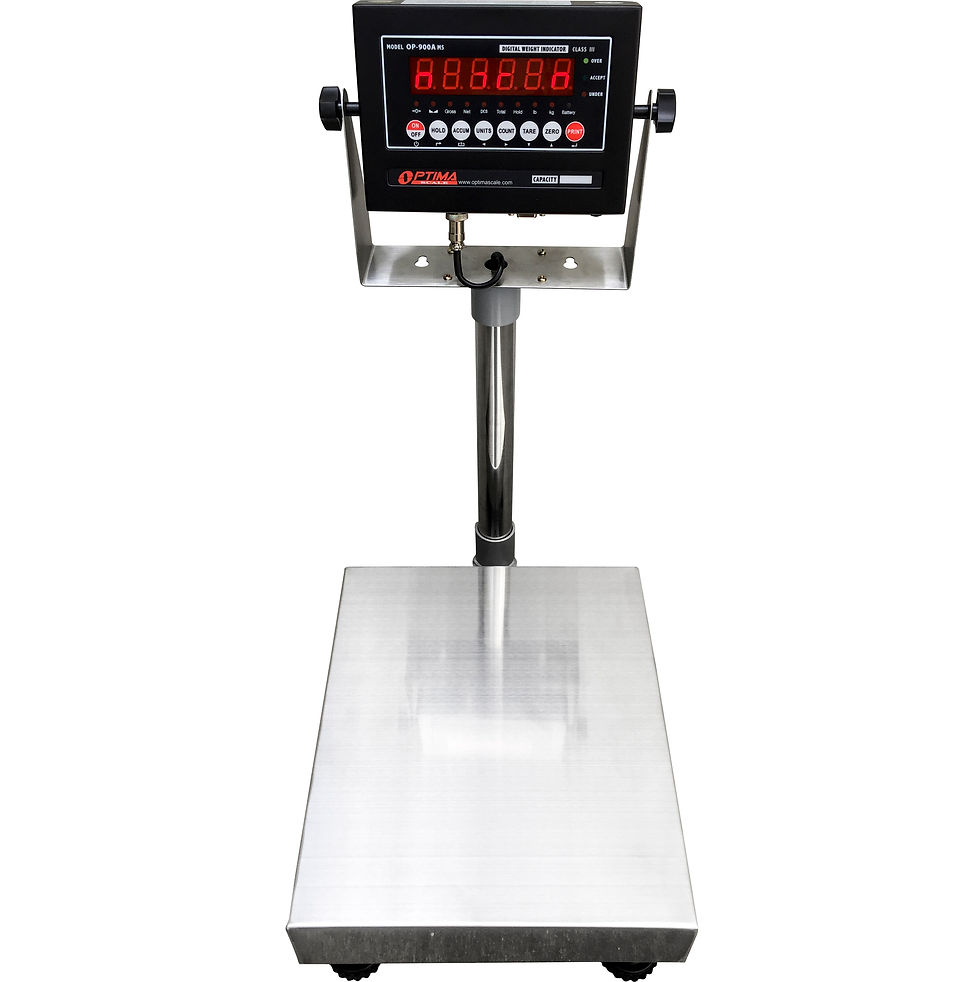

    OP-915 Bench Scale

    SKU: OP-915
    Pan Size and Capacity
    • Indicator Features

      • OP-900 NTEP indicator with LED or LCD display
      • 1" Tall backlit display
      • Optional Rechargeable battery (up to 100 hrs)
      • Metal casing (Stainless steel or washdown upgradeable)
      • AC adapter included
      • Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
      • Gross/Tare/Pre-Set Tare/Zero
      • Multiple Hold functions
      • Count weighing
      • Accumulation weighing
      • Overload / Underload alarm
      • Splash proof  keyboard and display
      • Connects to a remote display and printer
      • NTEP approved for 5,000 divisions
      • Displays up to 50,000 graduations
      • Full Duplex RS-232 Serial Port
    • Optional Accessories

      • Printer
      • Remote Display
      • Software
    • Specifications



      • Pan/Frame Material: Stainless Steel / Mild Steel
      • Accuracy CLass (T-900): 5000 e
      • Resolution: Display 30,000; ADC 2,000,000
      • Zero Stability Error: TK0 < 0.1 µV//K
      • Span Stability Error: TKspn < ±6 ppm//K
      • Sensitivity (Internal): 0.3 µV/d
      • Input Voltage: -30 ~ 30mV DC
      • Excitation Circuit: 5 VDC, 4 wire connection (+Exec, -Exec, +Sig, -Sig); Maximum 6 x 350Ω load cells
      • Power: AC100~250V; Rechargeable battery optional
      • Temperature/Humidity: -10℃ ~ +40℃; ≤90%RH
      • Storage Temperature: -40℃ ~ +70℃;
