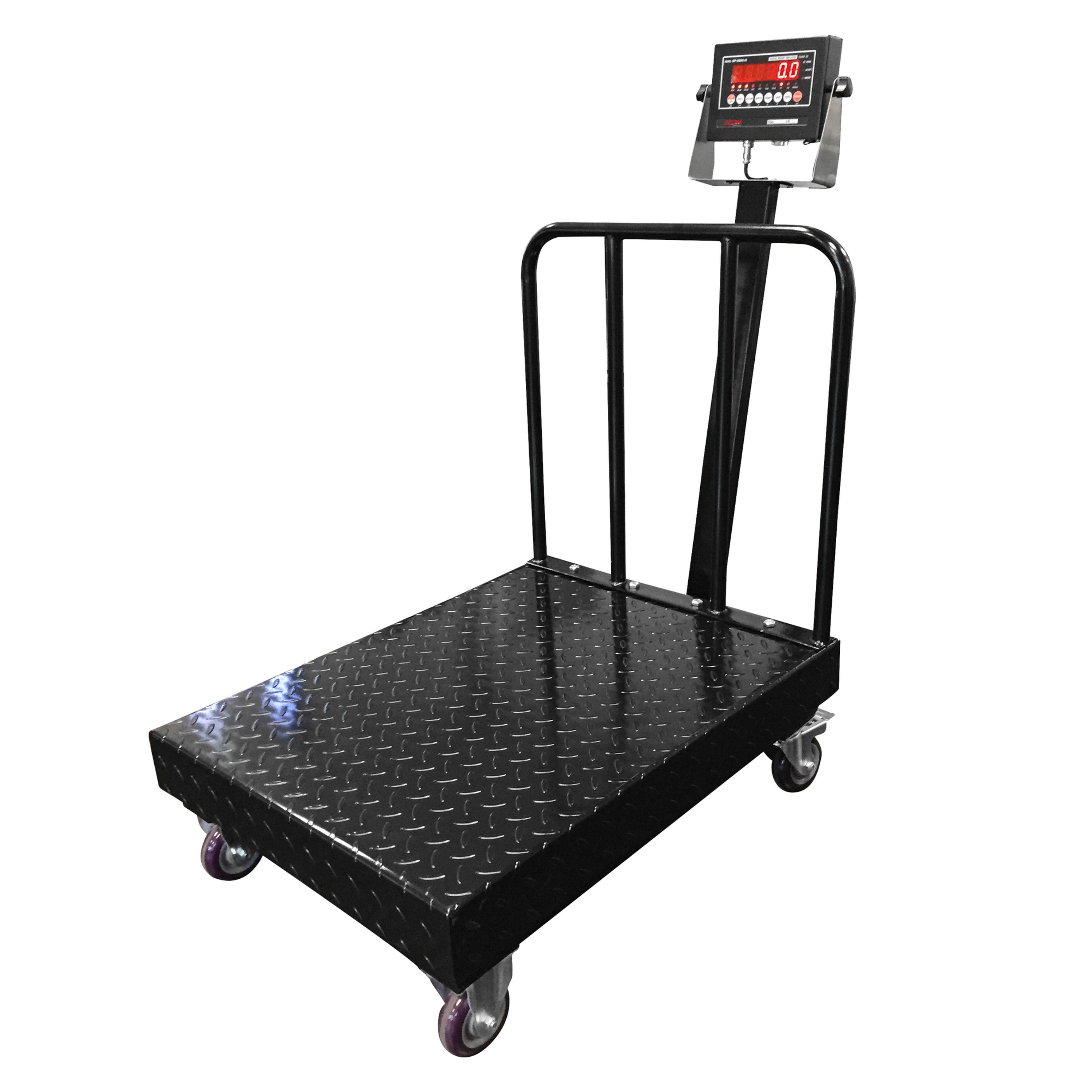

OP-915 Diamond Plate Bench Scale with Wheels and Backrail

OP-915 Diamond Plate Bench Scale with Wheels and Backrail

SKU: OP-915BWD

FEATURES:

  • Designed for speed and accuracy with an extremely heavy duty platform, built in back rails and wheels

  • Diamond Plated

  • Ideal for busy shipping docks, outdoor markets, manufacturers, food processing and other bulk sales

  • High Resolution with overload protection

  • Swivel wheel casters come with brakes in the back

  • Standard Package Includes: Platform, Shroud, Indicator (Legal for Trade), Load Cells, Column, Wheels, Backrail, Hardware

  • Painted mild steel construction

  • Adjustable tilt display for convenient viewing

  • Aluminum environmentally sealed single point load cell

  • OP-900 NTEP indicator with 6 digit, 1” display with rechargeable battery

  • Check-weighing feature for quick portioning

  • Built-in RS-232 communication port

  • Level bubble

  • US Legal For Trade CC #: 11-016

  • Canada Legal For Trade CC#: AM-5817

  • Factory Calibrated

  • Overload Protection

  • 1 year warranty on parts



Click Here for Bench Scale Flyer



Model

Size and Capacity

OP-91BWD-1824-500

18”x24”, Cap: 500lb x 0.1lb

OP-915BWD-2424-500

24”x24”, Cap: 500lb x 0.1lb



Quantity

  • Indicator Features

    • OP-900 NTEP indicator with LED or LCD display

    • 1" Tall backlit display

    • Rechargeable battery (up to 100 hrs)

    • Metal casing (Stainless steel or washdown upgradeable)

    • AC adapter included

    • Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)

    • Gross/Tare/Pre-Set Tare/Zero

    • Multiple Hold functions

    • Count weighing

    • Accumulation weighing

    • Overload / Underload alarm

    • Splash proof  keyboard and display

    • Connects to a remote display and printer

    • NTEP approved for 5,000 divisions

    • Displays up to 50,000 graduations

    • Full Duplex RS-232 Serial Port

  • Optional Accessories

    • Printer

    • Remote Display

    • Software

  • Size and Capacity options

    Pan: 18”(L) x 24”(W) x 5.5”(H) Capacity: 500lb x 0.1lb

    Pan: 24”(L) x 32”(W) x 5.5”(H) Capacity: 1,000lb x 0.2lb

  • Specifications

    Specifications

    • Pan/Frame Material: Stainless Steel / Mild Steel

    • Accuracy CLass (T-900): 5000 e

    • Resolution: Display 30,000; ADC 2,000,000

    • Zero Stability Error: TK0 < 0.1 µV//K

    • Span Stability Error: TKspn < ±6 ppm//K

    • Sensitivity (Internal): 0.3 µV/d

    • Input Voltage: -30 ~ 30mV DC

    • Excitation Circuit: 5 VDC, 4 wire connection (+Exec, -Exec, +Sig, -Sig); Maximum 6 x 350Ω load cells

    • Power: AC100~250V; Rechargeable battery optional

    • Temperature/Humidity: -10℃ ~ +40℃; ≤90%RH

    • Storage Temperature: -40℃ ~ +70℃;
