FEATURES:

  • Complete scale and indicator package
  • Rugged diamond deck safety tread plate or smooth stainless steel deck
  • Deck thickness: 1/4”
  • OP-900 NTEP indicator with 6 digit, 1” display
  • Height adjustable ball and cup leveling feet
  • Top access to leveling feet and side access to junction box
  • Channel construction for superior strength
  • Four NTEP certified alloy steel load cells
  • 20’ heavy duty metal shielded cable
  • Anti-corrosion, baked on powder paint
  • Factory pre-calibrated for quick setup
  • Overload Protection
  • 1 year warranty on parts



Click Here for Flyer









Product No.

Capacity

Platform Size

OP-916-2x2-5

5K lb x 1 lb

2’ x 2’ x 4.2”H

OP-916-3030-5

5K lb x 1 lb

30” x 30” x 4.2”H

OP-916-3x3-5

5K lb x 1 lb

3’ x 3’ x 4.2”H

OP-916-4x4-2

2K lb x 0.5lb

4’ x 4’ x 4.2”H

OP-916-4x4-5

5K lb x 1 lb

4’ x 4’ x 4.2”H

OP-916-4x4-10

10K lb x 2 lb

4’ x 4’ x 4.2”H

OP-916-4x5-5

5K lb x 1 lb

4’ x 5’ x 4.2”H

OP-916-4x5-10

10K lb x 2 lb

4’ x 5’ x 4.2”H

OP-916-5x5-5

5K lb x 1 lb

5’ x 5’ x 4.2”H

OP-916-5x5-10

5K lb x 1 lb

5’ x 5’ x 4.2”H

OP-916-5x5-20

20K lb x 5 lb

5’ x 5’ x 4.5”H

OP-916-4x6-10

10K lb x 2 lb

4’ x 6’ x 4.2”H

OP-916-5x7-10

10K lb x 2 lb

5’ x 7’ x 4.2”H

OP-916-5x7-20

20K lb x 5 lb

5’ x 7’ x 4.5”H

OP-916-4x8-10

10K lb x 2 lb

4’ x 8’ x 4.2”H

OP-916-6x6-20

20K lb x 5 lb

6’ x 6’ x 4.5”H

OP-916-7x7-20

20K lb x 5 lb

7’ x 7’ x 4.5”H

OP-916-7x7-30

30K lb x 5 lb

7’ x 7’ x 4.8”H

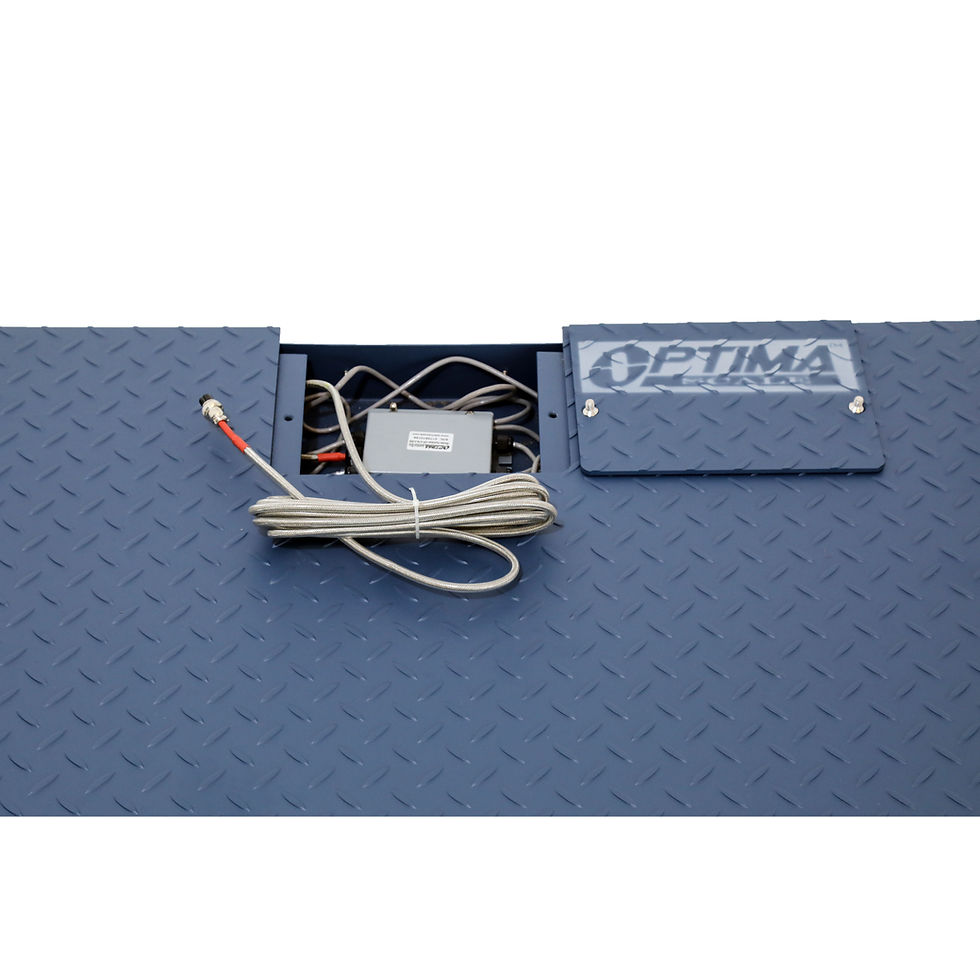

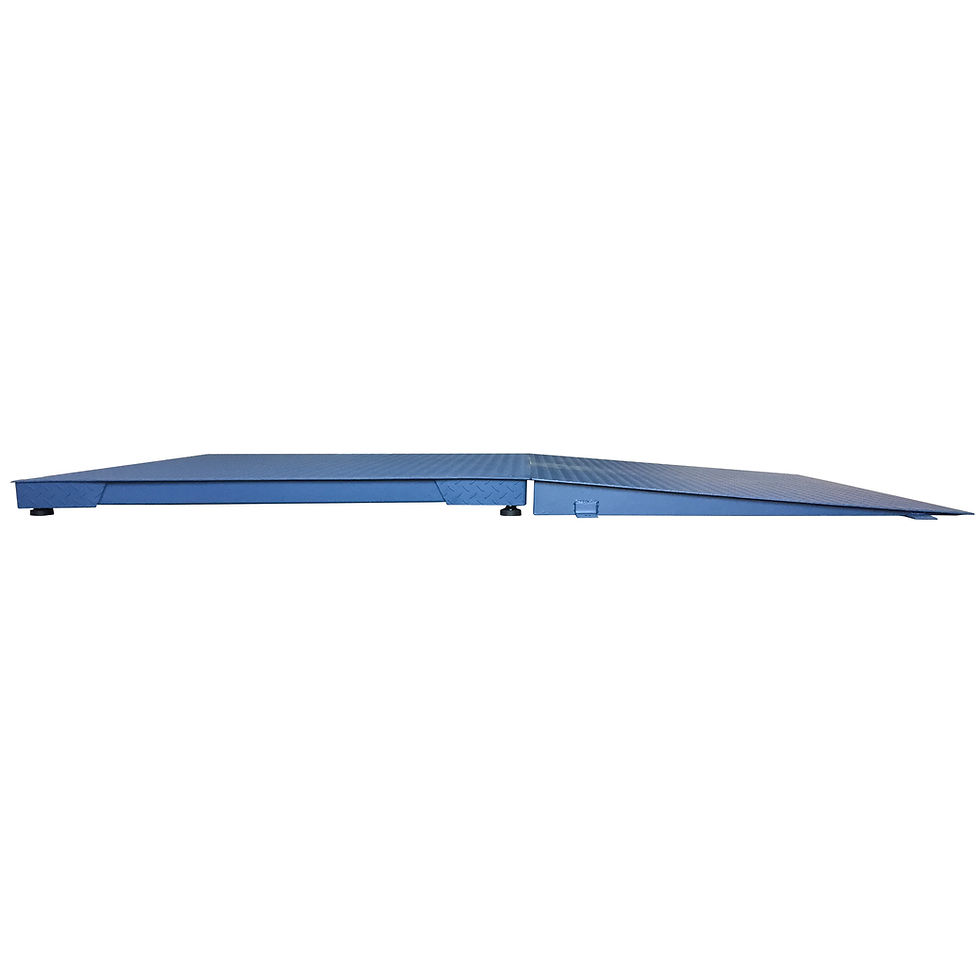

OP-916 NTEP Floor Scale

SKU: OP-916
Dimensions and Capacity
  • Indicator Features

    • OP-900 NTEP indicator with LED or LCD display
    • 1" Tall backlit display
    • Optional Rechargeable battery (up to 100 hrs)
    • Metal casing (Stainless steel or washdown upgradeable)
    • AC adapter included
    • Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
    • Gross/Tare/Pre-Set Tare/Zero
    • Multiple Hold functions
    • Count weighing
    • Accumulation weighing
    • Overload / Underload alarm
    • Splash proof  keyboard and display
    • Connects to a remote display and printer
    • NTEP approved for 5,000 divisions
    • Displays up to 50,000 graduations
    • Full Duplex RS-232 Serial Port
  • Optional Accessories

    • Ramps,
    • Bumper Guards
    • Printer
    • Remote Display
    • Software
    • Indicator Stand (standard or stainless steel)
    • Pit Frame
    • Portability Frame
    • Anchoring Plates
    • Calibration Weights
  • Specifications

    Material: Painted Steel

    Overload Protection: 200%

    IP Rating: IP65

    Indicator: OP-900 NTEP approved

    Power: AC/DC, built-in rechargeable

    battery (100 hrs)

    Cable Length: 20 ft

    Warranty:

    1 year limited warranty on electronics

    2 year limited warranty on platform

    Approvals: Legal for Trade:

    NTEP Certified at 5,000 divisions, Class III
