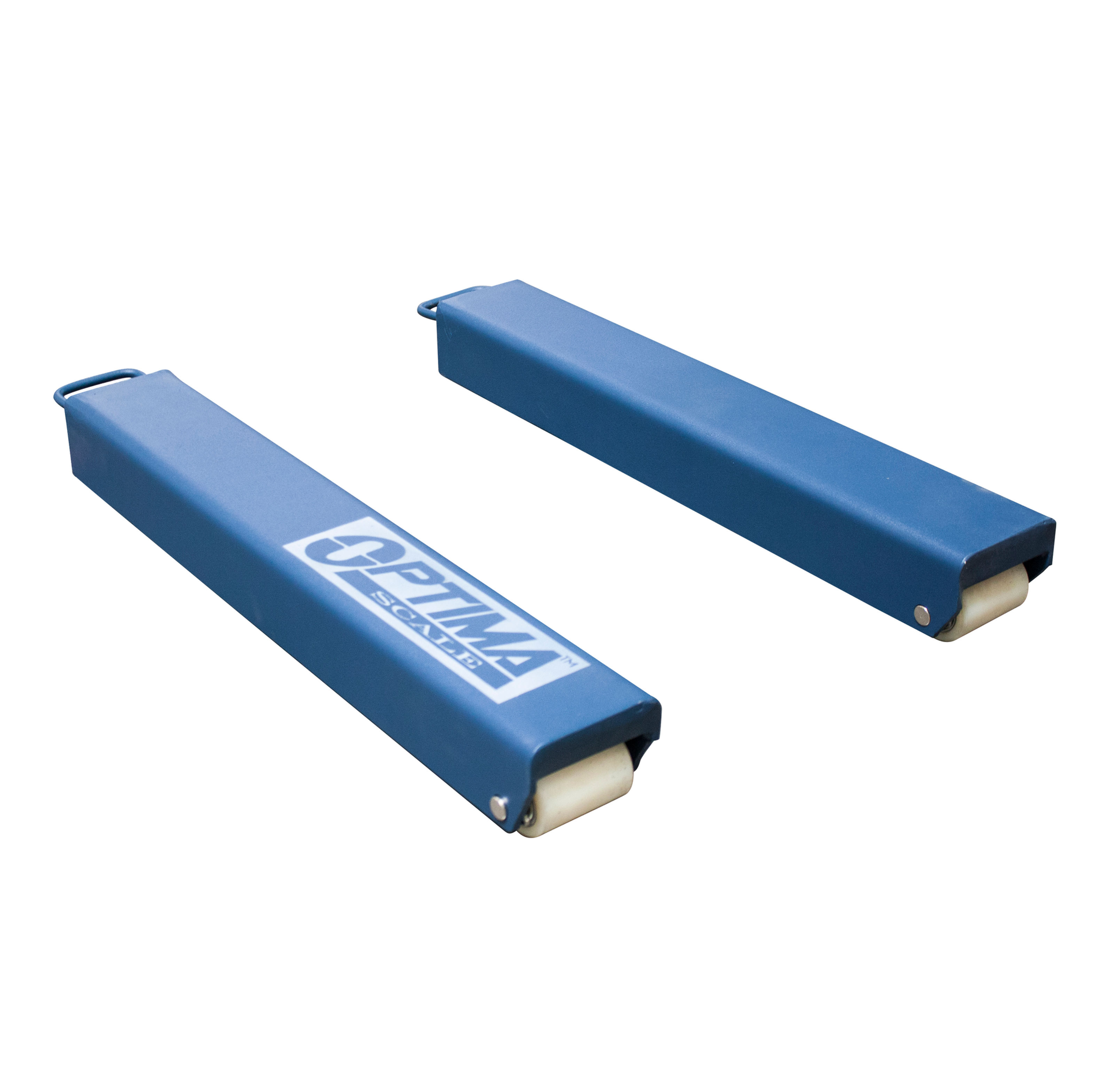

OP-919 Weigh Beam System

OP-919 Weigh Beam System

SKU: OP-919
* New version avaliable.
**Avaliable only while supplies last
FEATURES:
  • Portable, heavy duty carbon steel weighing beam system
  • Use for applications like cages for animals, silos, milk tanks, platforms, small boats and storage containers
  • Includes indicator with lb/kg selectable, rechargeable battery andauto hold
  • INTEP 6 digit, 1” display indicator with steel housing
  • Built-in RS-232 communication port
  • Integrated wheels and handles (No wheels on 60" option)
  • Easy installation
  • Sold as a set
  • Factory Calibrated
  • Overload Protection
  • 1 year warranty on parts

Click Here for Flyer

Indicator Features
  • Large 1' Blacklit LED or LCD display OP-909 indicator
  • With Rechargeable battery (up to 40 hrs)
  • Platic casing
  • AC adapter included
  • Multiple weighing units: (lb/kg/g/oz/lb:oz)
  • Gross/Tare/Pre-Set Tare/Zero
  • Multiple Hold functions
  • Count weighing
  • Accumulation weighing
  • Overload / Underload alarm
  • Splash proof  keyboard and display
  • Connects to a remote display and printer
  • Displays up to 50,000 graduations
  • Full Duplex RS-232 Serial Port
  • Stainless steel indicator for outdoor use available upon request

  • Size and Capacity options

    Model

    Capacity

    Beam Size

    Height

    OP-919-24-5k

    5,000 lbs x 1 lb

    24”[L] x 4” [W]

    3.7”

    OP-919-40-5k

    5,000 lbs x 1 lb

    40”[L] x 4” [W]

    3.7”

    OP-919-48-5k

    5,000 lbs x 1 lb

    48”[L] x 4” [W]

    3.7”

    OP-919-48-10k

    10,000 lbs x 2 lbs

    48”[L] x 5” [W]

    4”

    OP-919-60-20k

    20,000 lbs x 2 lbs

    60”[L] x 5” [W]

    4”

  • Indicator Features

    • OP-909 indicator with LED display
    • 1" Tall backlit display
    • Rechargeable battery (up to 40 hrs)
    • Plastic casing (Stainless steel or washdown upgradeable)
    • AC adapter included
    • Weighing units: (LED:kg/lb) ( LCD:lb/kg/g/oz/lb:oz)
    • Gross/Tare/Pre-Set Tare/Zero
    • Multiple Hold functions
    • Count weighing
    • Accumulation weighing
    • Overload / Underload alarm
    • Splash proof  keyboard and display
    • Connects to a remote display and printer
    • Displays up to 50,000 graduations
    • Full Duplex RS-232 Serial Port

  • Specifications

    Material: Plastic

    Overload Protection: 200%

    Power: AC/DC, built-in rechargeable
    battery (72 hrs)

    Capacity: 5,000 lbs - 20,000 lbs

    Height: 3.7 in

    Cable Length: 20 ft

    Warranty:
    1 year limited warranty on electronics

    2 year limited warranty on platform
